Ford Mustang V6 3.7L

Ford Mustang V6 3.7L

Ford Mustang V6 3.7L engine built by KMS Racing Engines running with a Pectel ECU for off road racing.

Engine manufacturer    Ford
Type    Mustang
Configuration / # cylinders    V6
Peak horsepower    360 *
Peak torque    445 *
Maximum RPM    7000 *
Displacement    3700cc
Bore    KMS
Stroke    KMS
Compression ratio    KMS
# of camshafts    4 / VCT
Pistons    KMS
Valves / made    KMS
Lifter type    Bucket
Manifold type    std

*   Engine development on request for different race classes.




> Click image to enlarge

TOTAL: 2 - files

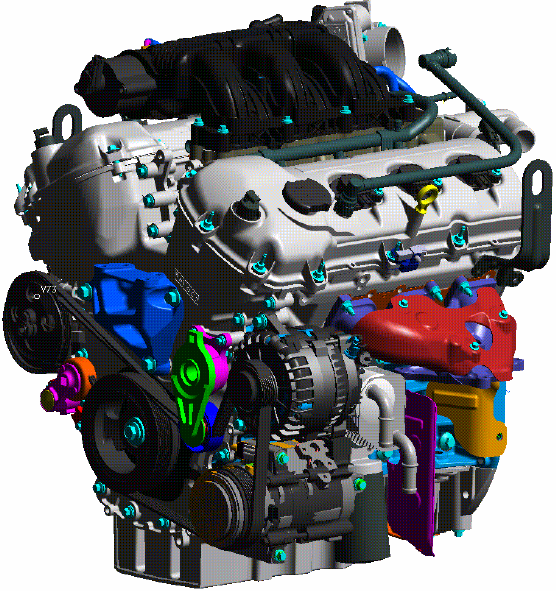

File: Ford_Duratec_35_engine
Size: 189 KB
Download

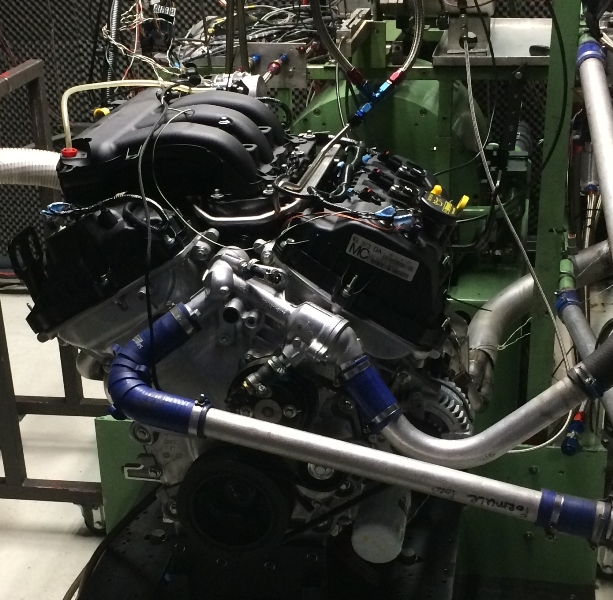

File: Ford V6 op dyno 1
Size: 300 KB
Download
